Vx670 from VeriFone

Purchase Now
Call Now for special pricing
too low to be displayed,
as well as lease pricing.

Consumer response of the "on the spot" service has been tremendously positive according to a consumer survey of restaurant patrons who experienced the "on the spot" solution.

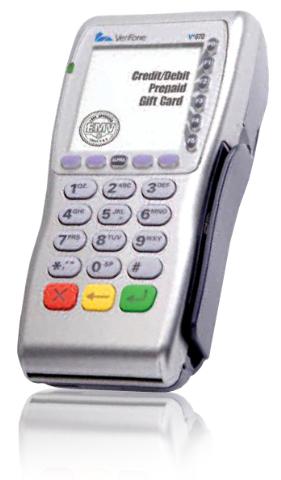

The Vx 670 is the world's smallest all-in-one wireless handheld payment device. Built with Purpose-inspired design–with the end user in mind–the Vx 670 is a radical revolution at hand!

The PCI PED approved Vx 670 is a small, sleek, and secure handheld payment device designed specifically for wireless, customer-facing payment. VeriFone’s patent-pending MAXui design provides the largest user interface in the smallest form factor with a large, white backlit display and large blue backlit keys. In addition, its purpose inspired design–focused on real world usage–is rugged, drop-resistant, and spill-resistant to hold up to the most demanding conditions.

More Table Turns For Restaurants

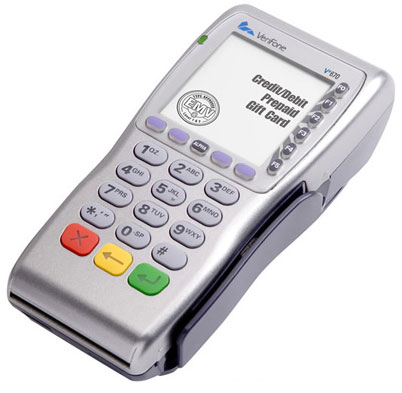

Pay at the table means less trips to the till, which equals more table turns and an improved customer experience. Utilizing WiFi or GPRS communications with the Verifone Vx670 (shown right), restaurant operators large and small can increase efficiency by reducing the number of steps severs need to complete a card payment transction and speeding up table turns as customers no longer have to wait to complete payment.

• 85% of respondents said the system was faster than conventional payment methods at restaurants

Provide Peace of Mind
With the recent national publicity regarding identity theft and card skimming, consumers are keenly aware of the growing risks associated with using their cards in environments where they must hand over possession of their card. With ON THE SPOT, the card never has to leave the consumer's hand. Consumer advocate, Clark Howard, featured ON THE SPOT in his primetime special which showcased the TablePay solution. View the TV promo and 3 minute segment.

• 87% of respondents said they had a “high” sense of security using the system.

PIN Debit Savings
Restaurant operators can take advantage of the increasing use of debit cards by utilizing PIN debit transactions to decrease transaction fees. Restaurant operators utilizing the Vx670 with VeriFone's managed services portal have been able to convert on average 39 percent of card transactions to PIN debit, which for high volume restaurants can add up to hundreds of dollars in card interchange fee savings per location.

• 52% of respondents said being able to use the PIN for their purchased would be important to them.

Markets

Restaurnts
Discount Outlets
Hospitality Services
Tourist Centers
On The Spot Vendors

Features
Additional Images
Spec Sheet

Breakthrough Wireless Design
- Designed through our Purpose Inspired Design program specifically for wireless, customer-facing, handheld payment with a choice of Wi-Fi or GPRS connectivity options
- VeriFone's MAXui design provides largest user interface for an all-in-one payment system and the industry's smallest overall size for maximum ease of use
Unprecedented Usability
- 38mm diameter paper roll with trouble-free, drop-in clam shell loading and dual-tear bar so receipts can be ripped in any direction
- Large 128x128 display with increased resolution, anti-glare screen, and high-contrast white backlighting for easy readability under diverse lighting conditions
- Large, well-placed, blue backlit keys with improved tactile response to simplify usage and minimize finger slips
- Quiet, fast thermal printer with rear placement to maximize user interface area
- Vertical mag-stripe card reader with contoured blade for optimal card reading
- "Hands-free" holster fits onto server's or clerk's belt so POS device can be quickly removed and handed to customer
Exceptional Performance and Functionality
- Powerful 32bit ARM9 processor completes transactions in seconds
- High-capacity 7.2 volt 1800 mAh lithium-ion battery can be quickly swapped with one hand
- Standard base for drop-and-go charging or optional full-featured base with spare battery charging; also contains USB ports for connection to supported USB peripherals and dial backup
- Rounded corners and drop resistance to three feet on concrete floor to minimize breakage
- Sealed MSR blade locks out moisture for outstanding spill resistance
Unmatched Security
- Industry benchmark WPA WiFi security
- PCI approved for debit and other PIN-based transactions
  EMV Level 1 and 2 Type Approved
  Other security protections included tamper-resistant construction, SSL protocols and VeriShield file authentication

VeriFone Vx 670 Wireless Terminal

Processor
32-bit ARM9 microprocessor

Memory
6MB (4MB of Flash, 2MB of SRAM)

Display
128x128 pixel graphical LCD with high-contrast white backlighting, supports 16 lines x 21 characters with standard font-set

Magnetic Card Reader
Triple track (tracks 1, 2, 3), high coercivity, bi-directional

Optional Smart Card
ISO 7816, 1.8V, 3V, 5V or synchronous and asynchronous cards; EMV Approved

SAM Card Reader
Three Security Access Modules (SAM) (optional)

Keypad
3x4 numeric keypad, plus 10 soft-function keys and 6 screen-addressable keys; PCI approved

Peripheral Ports
Single multi-port connector, which supports RS232, USB Host, USB Slave, and Integrated Charging

Printer
Integrated thermal with graphics capabilities, 18 lines per second, 24 or 32 columns; paper roll 38mm with core (2.25") x 15M, single ply

Wireless Modem
Supports Wide Area Wireless GSM/GPRS on 900/1800 Mhz or 850/1900 MHz; Local Area Wireless WiFi 802.11b/g; WPA encryption 2.4 Ghz

Modem Dongle
Optional USB Modem Dongle for use with multi-port connector, or use in full-featured base. Standard 33.6kbps Dial modem (Bell 103/ 212a, ITU, V.21/ V.22/ V.22bis/ V.32/ V.32bis/ V.34, synchronous and asynchronous)

Protocols
Application selects between asynchronous protocols (Visa 1, Visa 2, and others) and synchronous protocols (including ISO 8583/SDLC)

Security
3DES encryption, Master/Session and DUKPT key management; VeriShield file authentication

Physical

Length
168mm
Max Width of 78mm, with reduced width of 70mm at grip-zone

Height
58mm

Weight
Terminal 439g (0.97lbs), Full shipping 1,219g (2.68lbs)

Environmental

Operating Temperature
0°C to 40°C (32°F to 104°F)

Relative Humidity
5% to 90% non condensing

Voltage
AC input 100-240 VAC, 50/60Hz
DC output 12 VDC, 2.0 Amp
